AC variable frequency and voltage regulation control

Special interface is connected with elevator system for variable frequency control

Operating voltage in variable frequency mode: AC 220V

Car door lock function

Directly mounted on straight beam of the car，option car top mounted

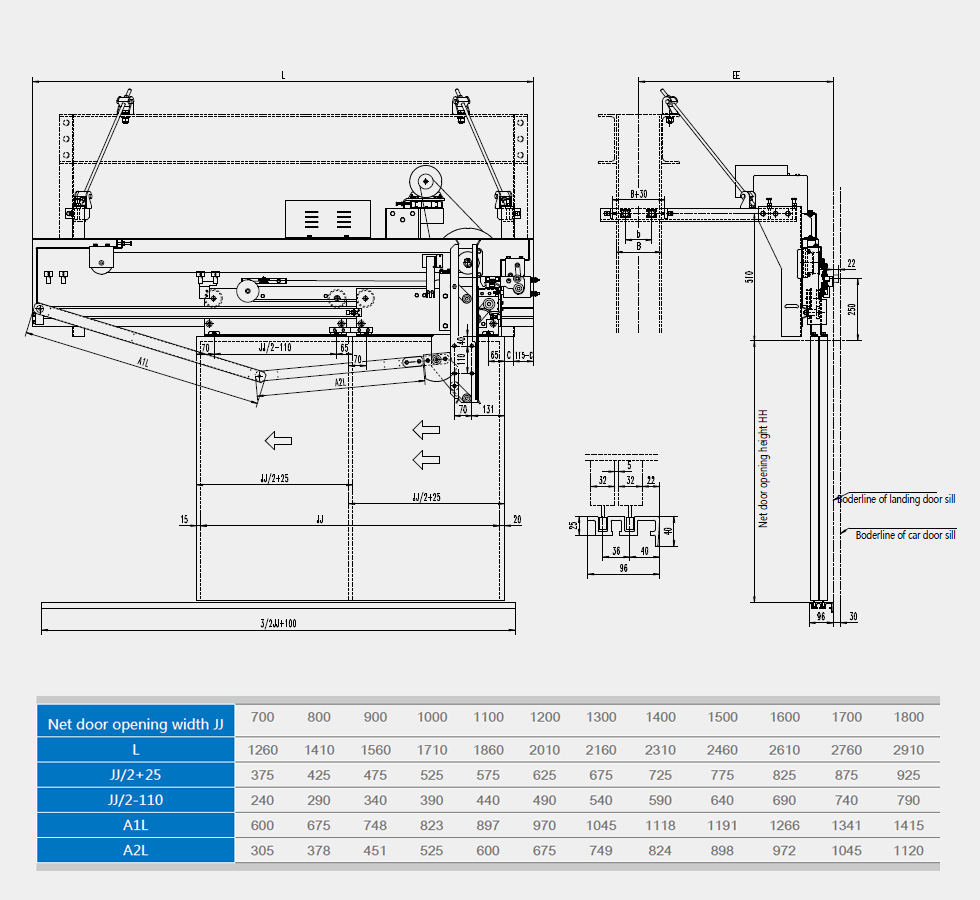

The figure indicates left opening, and the right opening is manufactured symmetrically

“C” is the distance between the inside of straight beam and shutter borderline
